UV Optical Technology for optimal measurements of COD, BOD, TSS, TOC .

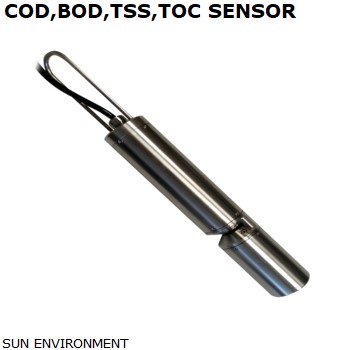

 ON LINE COD,BOD ANALYZER

The Spectral Absorption Coefficient (SAC) at 254 nm helps determine the Organic Content of a water sample but also the COD, TOC and BOD parameters by applying the appropriate correlation coefficients.

Applications :

  • Urban wastewater treatment: detecting organic load variations during input / treatment process / output.
  • Treatment of industrial effluents
  • Surface water monitoring
  • Fish farming, aquaculture (freshwater)
  • Drinking water: monitoring Organic matter in raw water, oxidation process, coagulation, activated carbon
    filtration.

Highlights:-

  •  UV 254 spectral absorption without any reagents or consumables.
  • Modbus RS-485 digital communication.
  • Multi-parameter measurement: SAC , CODeq, TOCeq & BODeq, Turbidity eq
  • Automatic Turbidity compensation.

Measurement principle
UV 254 nm absorption
Wave lengths
254 nm (turbidity correction at 530 nm)
Type of detector
Silicon Photodiode
Light Source
LED UV 254 +/- 5nm and 530 +/- 5 nm
Optical paths
2 and 50 mm
Protection Class
Ip68
Operating Temperature
0-40°C
Measuring Range
pH2 to.pH12
Dimensions
48x371 or 48x419 (see overall dimensions diagram)
Weight
1600 - 1800g depending on the optical path (cable not included)
