Se 4000 series Continuous Emissions Monitoring system can monitor gases, including SO2, NOx, O2, dust, humidity, temperature, pressure, flow parameters, etc.

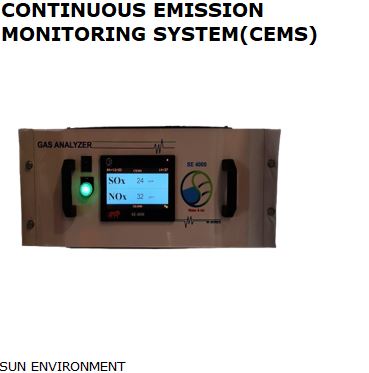

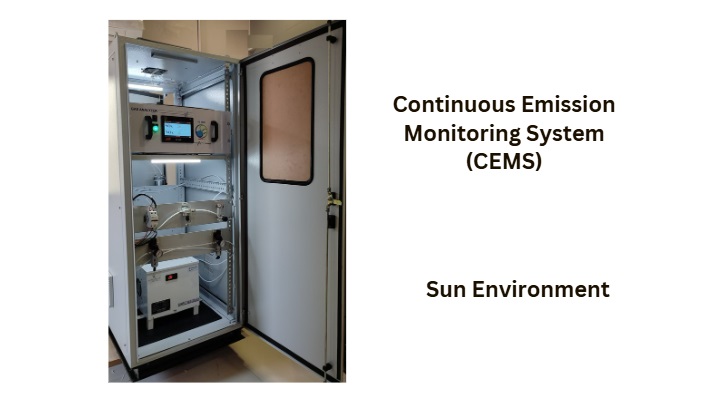

CONTINUOUS EMISSION MONITORING SYSTEM(CEMS)



Se 4000 series is a multi-gas monitoring system aimed to continuously and reliably measure emissions from various industrial combustions. Technology platforms either Extractive, Hot Extractive, Hot-Wet Extraction, Dilution or In-situ measurement system. The system is extendable with additional parameters upon request. All output signals proceed through the data acquisition system and then upload to the DCS or environmental authority server.

The system adopts a multi-gas analyzer to measure the concentration of SO₂, and NOx, by  Electrochemical, PID, NDIR, TDLAS (Laser), FID, UV-DOAS measurement technology.. The system also integrated internal maintenance and data process unit, which enables auto-calibration and online data transmission to minimize customer maintenance.



APPLICATION:

  • Steam boilers
  • Iron and steel processing
  • Refuse incinerators
  • Electric power generation plants
  • Sulfuric acid plants
  • Glass furnaces
  •  Chemical Plants





Measuring Range
O2 - 0 - 21 %
Measuring Range
O3 - 0 - 20 ppm
Measuring Range
SO2 - 0 - 2000 ppm
Measuring Range
NO - 0 - 5000 ppm
Measuring Range
NO2 - 0 - 200 ppm
Measuring Range
CO - 0 - 5000 ppm
Measuring Range
CO2 - 0 - 5000 ppm
Measuring Range
CO2 - 0 - 5%
Measuring Range
HCl - 0 - 100 ppm
Measuring Range
Cl2 - 0 - 20 ppm
Measuring Range
NH3 - 0 - 100 ppm
Measuring Range
H2S - 0 - 2000 ppm
Measuring Range
VOC - 1 - 200 ppm
