Portable multiparameter handheld meter for the simultaneous determination of pH, temperature and conductivity or dissolved oxygen. The combination of user-friendly operator guidance and graphic LCD display makes the meter the ideal companion for daily on-site analysis of water.

SD 335 PH/CON/DO



Application:

  • Boiler Water
  • Cooling Water
  • Drinking Water Treatment
  • Pool Water Control
  • Waste Water Treatment

Features:

  • Intuitive user interface with graphical LCD-display
  • Galvanically isolated measuring inputs
  • Data transfer via Micro-USB in CSV format
  • Robust protective armouring with two electrode holders

Description:

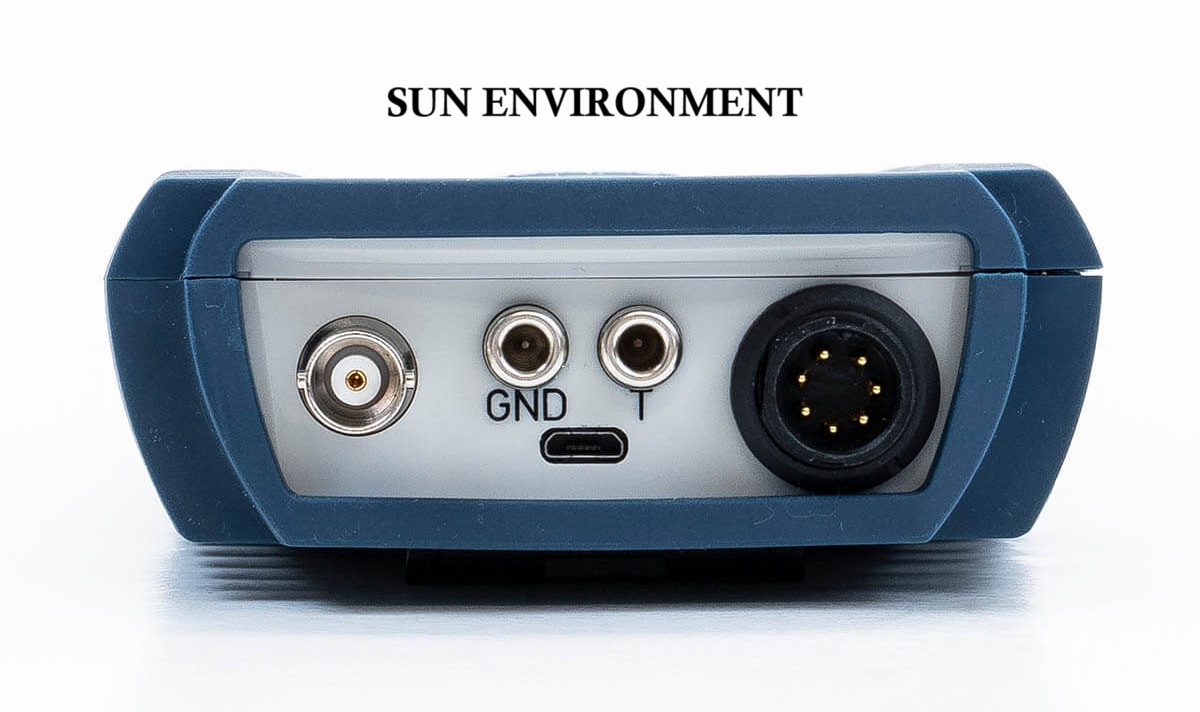

Due to galvanic isolation the temperature and two other parameters can be determined and displayed simultaneously. The combination of user-friendly operation and graphic LCD display in 7 different languages makes the portable measuring instrument the ideal companion for daily use in water analysis. Measurement data including time stamp and location ID can be recorded with the data logger function. Via the micro-USB interface, the data can be easily transferred to a computer and processed without the need of additional software.

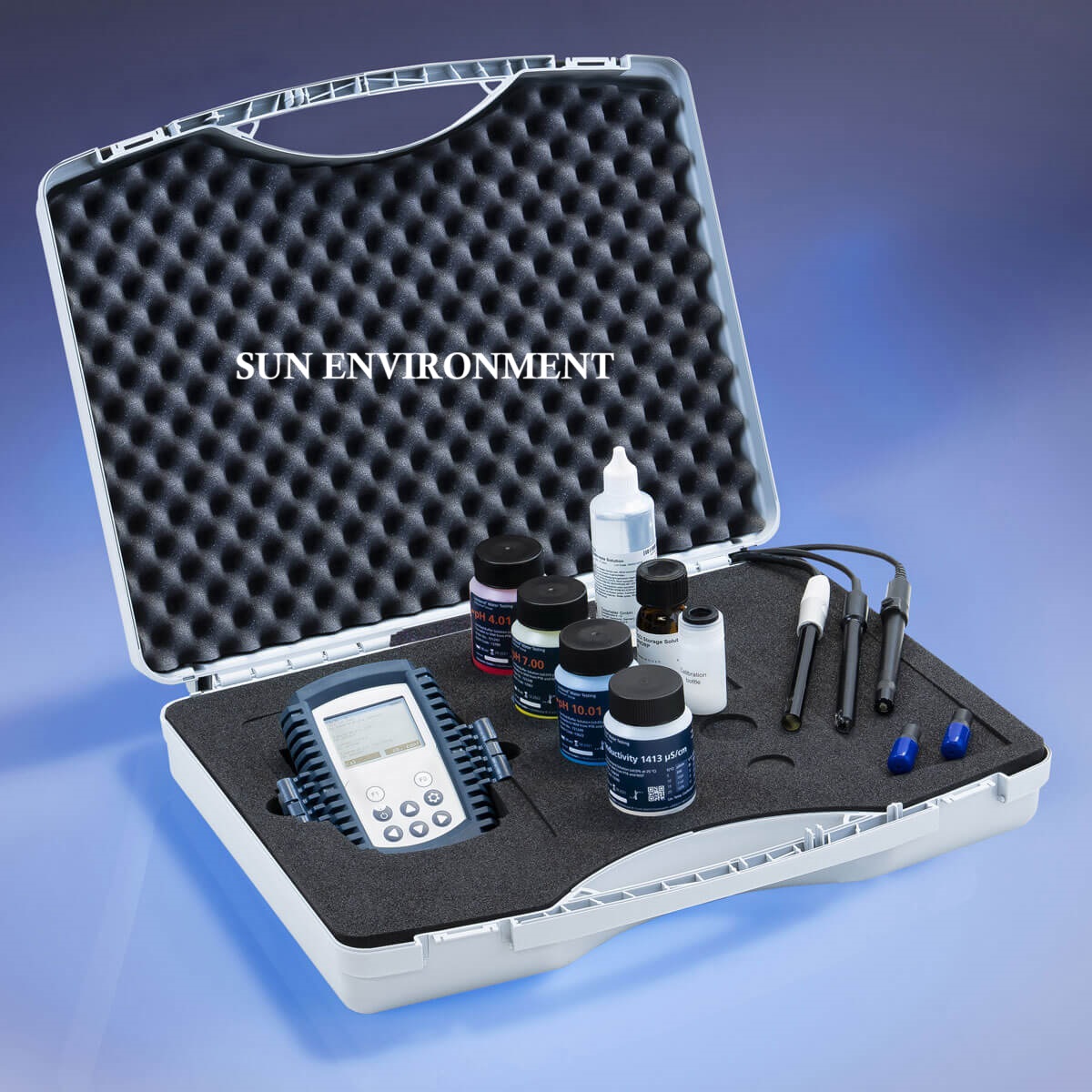

The protective armouring with two electrode holders guarantees safe working even in extreme environmental conditions at all times. The stand attached to the back of the housing can be used conveniently as a hanger or belt clip. The range of functions is completed by the status display for the rechargeable NiMH batteries, the self-diagnosis of the sensors and much more.


Measuring Range
Oxygen 0 - 50 mg/L O2
Measuring Range
Oxygen 0 - 500 %
Measuring Range
pH -2 - 16
Measuring Range
Redox -2000.0 - 2000.0 mV
Measuring Range
Temperature -10 - 110 °C
Display
Backlit LCD with graphical display
power supply
3 NiMH-battery pack (AAA) Micro-USB
Portability
Portable
Protection Class
IP 67
Compliance
CE, RoHS ,WEEE
Dimensions
100 x 164 x 37 mm
Weight
310 g
