The MD 610 multi-parameter photometer features a Bluetooth® interface which allows for the sending and sharing of testing data directly from the field

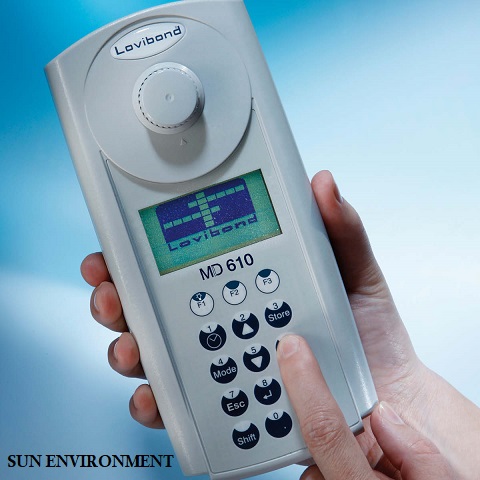

MD 610



Application:

  • Boiler Water
  • Cooling Water
  • Disinfection Control
  • Drinking Water Treatment
  • Food And Beverages
  • Galvanization
  • Pool Water Control
  • Raw Water Treatment
  • Waste Water Treatment

Features:

  • Easily transfer testing data directly from the field using the AquaLX app
  • Portable instrument for use in the lab, plant or out in the field
  • Multi-Parameter Testing device combines all of the key water testing parameters and testing ranges

Description:

The Lovibond® photometers of the MD 600 series are the perfect choice to analyse and test wastewater, drinking water, industrial process water or water samples for science or research everywhere and at any time under laboratory conditions. All measurement instruments have the analytical properties of a laboratory photometer for all important parameters in water analysis.

The free app AquaLX® is ideally designed for use in on-site measurements. Compatible with IOS®- and Android®-based smartphones and tablets, it enables uncomplicated data transmission. It maps all measured values ​​as an illustrative graphic with minimum and maximum limits and supports the export of the data as an Excel®-compatible CSV file.

Using the correct reagent and sample cell for a preprogrammed calibration curve is essential to achieving accurate results. With the push of a button, it's easy to confirm what is required for the test. The method information will also show which conversion factors can be automatically applied to a method, so results are displayed in the required reporting units. Store up to 1,000 readings with location ID, time and date stamp. Test data stored on the instrument can be easily exported using the IRiM accessory, which uses an infrared connection to export data directly to an Excel or .txt file. With over 120 pre-programmed testing methods on one instrument, many parameters offer the choice of using Tablet, Powder Pack or Liquid reagents.



Optics
LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Wavelength range: 430 nm IF Δλ = 5 nm 530 nm IF Δλ = 5 nm 560 nm IF Δλ = 5 nm 580 nm IF Δλ = 5 nm 610 nm IF Δλ = 6 nm 660 nm IF Δλ = 5 nm IF = interference filter
Wavelength Accuracy
± 1 nm
Photometric Accuracy
2 % FS (T = 20 °C – 25 °C)
Display
Graphic-display
Interfaces
Bluetooth
power supply
4 batteries (Mignon AA/LR6)
Battery Life Time
approx. 26 h
Portability
Benchtop
Protection Class
IP 68
Dimensions
95 x 45 x 210 mm
Weight
450 g
Compliance
CE
