The NTU sensor integrates a low-cost optical technology, with a very few maintenance and no consumables.

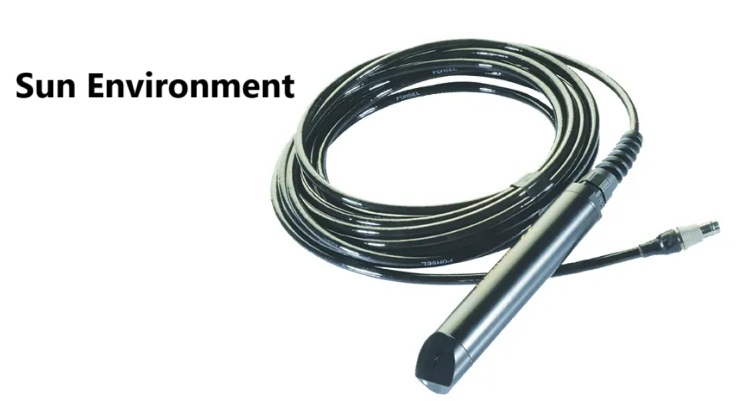

NEPHLOMETRIC TURBIDITY SENSOR

The measure principle is based on IR nephelometry / 850 nm. The sensor can be calibrated with a formazine standard solution.



APPLICATIONS

  • Urban wastewater treatment (inlet/outlet controls)
  • Sanitation network
  • Industrial effluent treatment
  • Surface water monitoring
  • Pumping drinking water

HIGHLIGHTS

  • IR optical sensor with optical fibre
  • Range : 0 to 4000 NTU or 0-4500 mg/L
  • Robust and waterproof (IP68)
  • Ultra low-power consumption
  • Digital output Modbus RS-485
  • Nephelometry measurement

TECHNICAL SPECIFICATION

  • Measure principle – Diffusion IR at 90
  • Measure ranges conductivity – 5 to 4000 NTU .
  • Protection – IP68
  • Resolution – 0,01 to 1 NTU – mg/L
  • Accuracy – < 5% of the reading

Measuring Range
0 to 4000 NTU or 0-4500 mg/L
Accuracy
< 5% of the reading
Resolution
0,01 to 1 NTU - mg/L
Working temperature
0 degree celcius to + 50 degree celcius
Dimensions
Diameter : 27 mm ; length : 147mm
Weight
300 g(sensor +cable 3meters)
Protection Class
IP68
